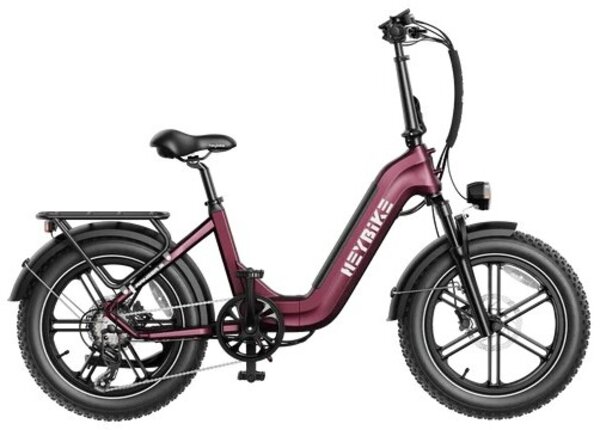

Heybike Ranger S (750W)

The Ranger S e-bike is a folding electric bike equipped with a powerful 750W motor. It offers a remarkable range of up to 55 miles on a single charge, allowing riders to explore their surroundings with ease and convenience.

Motor & Performance
750W rear hub motor (peaks at 1400W)

Torque output: ~80–100Nm depending on model

Top speed: up to 28 mph (pedal assist), 20 mph (throttle)

Class 2/3 compliant with adjustable speed settings via app

Battery & Range
48V 14.4Ah (692Wh) removable lithium-ion battery

Real-world range: ~40–55 miles depending on terrain and assist level

4A fast charger (full charge in ~3.5 hours)

Suspension & Ride Comfort
Hydraulic front suspension fork

Rear shock (on Ranger S) for full suspension comfort

20" x 4.0" fat tires for stability on pavement, gravel, and light trails

Braking & Safety
Hydraulic disc brakes for strong stopping power

Integrated LED headlight, brake light, and turn signals

UL 2849 certification and IP65 water resistance

Smart Tech & Controls
LCD or TFT display with ride stats and PAS control

Heybike app for speed tuning, diagnostics, and ride tracking

NFC tap-to-start and passcode protection

Design & Utility
Foldable aluminum frame for compact storage and transport

Rear rack supports up to 120 lbs; total payload capacity: ~330–400 lbs

Shimano 7-speed drivetrain for versatile riding

Fits riders from ~5'0" to 6'3"
